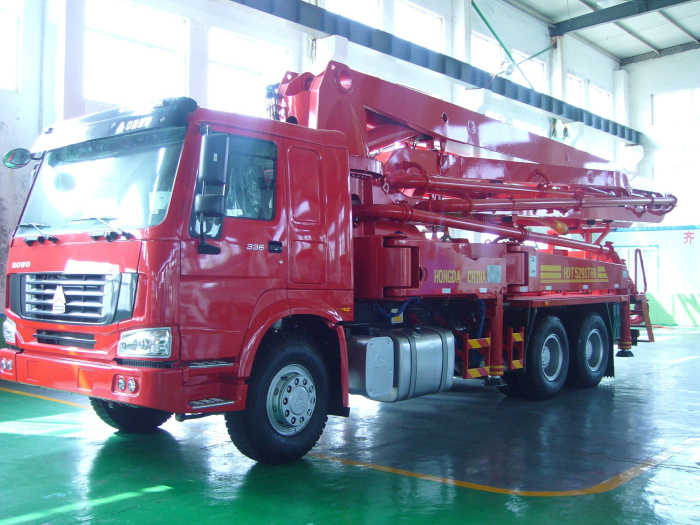

Sinotruk Truck Concrete Pump 21m Boom with HOWO Chassis
Specifications:
| Model | JH | Units | JH50-18m | JH50-21m | JH53-24m | JH50-25m |
| Pumping system | Max concrete discharging pressure | Mpa | 13/7.6 | 13/7.6 | 13/7.6 | 13/7.6 |
| | Rated working pressure | Mpa | 31.5 | 31.5 | 31.5 | 31.5 |
| | Pumping frequency | min-1 | 14/23 | 14/23 | 14/23 | 14/23 |
| | Hopper capacity | m3 | 0.65 | 0.65 | 0.65 | 0.65 |
| | Filling height | mm | 1500 | 1500 | 1500 | 1500 |
| | Hydraulic system form | | Open | Open | Open | Open |
| | Distribution valve model | | S tube valve | S tube valve | S tube valve | S tube valve |
| | Oil tank diameter | mm | φ125 | φ125 | φ125 | φ125 |
| | Concrete cylinder diameter | mm | φ200 | φ200 | φ200 | φ200 |
| | Hydraulic oil cooling | | Air cool | Air cool | Air cool | Air cool |
| Placing boom | Max winding height | m | 21 | 21 | 24 | 21 |
| | Turning angle | ° | 365 | 365 | 365 | 365 |
| | Arm angle | ° | 90°/180°/365° | 90°/180°/365° | 90°/180°/365° | 90°/180°/
365°/540° |
| | Arm number | section | 3 | 3 | 4 | 4 |
| | | | ZZ1164G | ZZ1164G | ZZ1164G | ZZ1164G |
| | Wheelbase | mm | 4500/4700 | 4700/5000 | 4700/5000 | 4700/5000/
5200 |
| | Max motor
power | kw/rpm | 132/2200 147/2200 | 132/2200 147/2200 | 132/2200 147/2200 | 132/2200 147/2200 |
| | Effluent standard | | China IV | EUIII | EUIII | China IV |
| | Total weight | kg | 13500/14000 | 15500 | 16500 | 15500 |
| | Diameter
(L*W*H) | mm | 9350×2500×3500 | 9450×2500×3500 | 9650×2500×3500 | 9650×2500×
3500 |
| Other | Hydraulic oil tank volume | L | 300 | 300 | 300 | 300 |
| | Water tank capacity | L | 300 | 300 | 300 | 300 |
| | Lubricating system | | Centralized automatic lubrication | Centralized
automatic lubrication | Centralizedautomatic lubrication | Centralized
automatic lubrication |
| | Control system | | Manual + Remote | Manual + Remote | Manual + Remote | Manual + Remote
|
Description:
The small concrete pump truck combines high reliability, economy, safety and durability in one, reasonable matching chassis, power, electronically control and hydraulic pumping system. There are flexible and efficient telescopic booms, small outrigger footprint, easy to move the vehicle. Automatic high and low pressure switch, outlet pressure is high, can meet the demanding requirements of high standard long-distance transport of concrete. Especially for overseas construction projects, low-rise buildings, ports, ideal for interior construction and other construction equipment occasions.
Advantage:
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the quality goods.
4. Our rich-experience technical teams are standing by all the tiim
5. You can know the advance overseas technology from our products. Which bring you more competitive advantages.
Applications:
Concrete Pump Truck (Truck-mounted Concrete Pump with Foldable Booms) is developed by itself on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life.
